Diesel Products

Valvetrain Components Built by Manton

Manton Racing Products specializes in the development and manufacturing of high-performance valvetrain components. If you don’t see the part or application you need, contact us — we may have a solution for you.

Need a custom pushrod? We can build it to your specifications. Click here, Custom Pushrods Order Form.

Select Categories

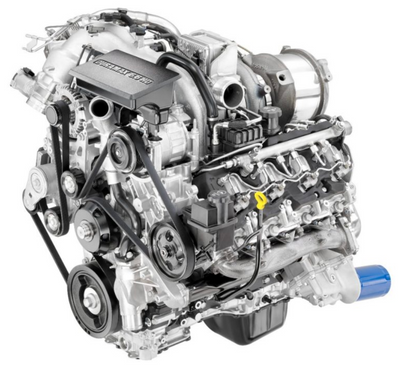

Duramax
Duramax 14 PRODUCTS

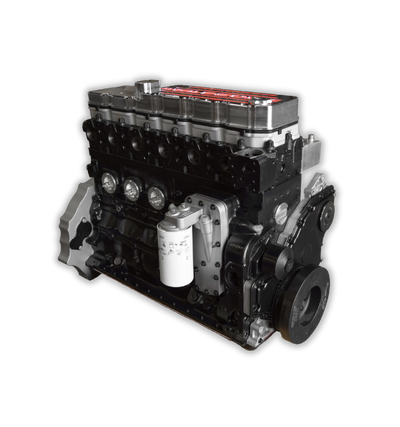

Cummins
Cummins 36 PRODUCTS

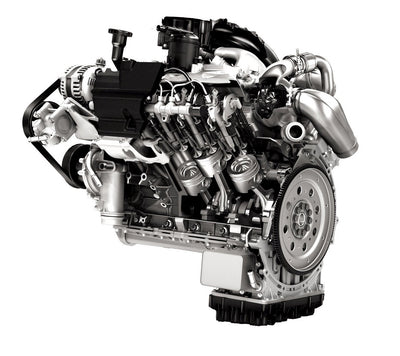

Powerstroke
Powerstroke 23 PRODUCTS

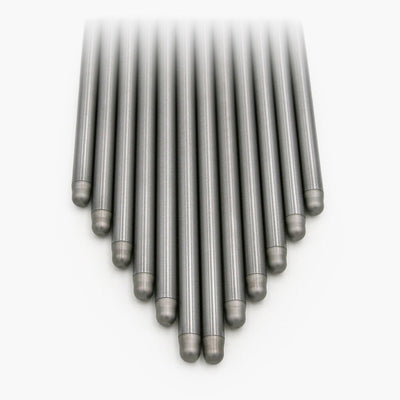

Diesel Pushrods
Diesel Pushrods 38 PRODUCTS

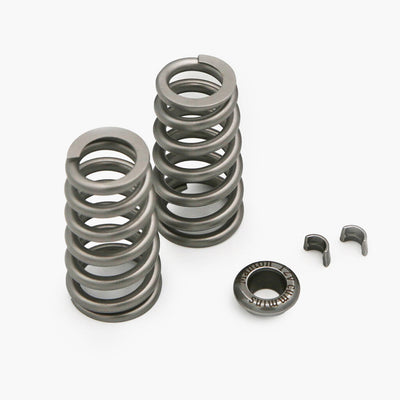

Diesel Valve Springs
Diesel Valve Springs 7 PRODUCTS
Clearance
Clearance
Skip to results list

Filters

74 items

Filter

  • Manton Diesel D-205-B-HYD-24V-12 - Engine Push Rod

    2019-24 6.7L 24v Cummins with Hydraulic Lifter - Series 2 One Piece Pushrod, Performance Upgrade 7/16 Solid Bar, Factory Length - 1 Set of 12

    2019-24 6.7L 24v Cummins with Hydraulic Lifter - Series 2 One Piece Pushrod, Performance Upgrade 7/16 Solid Bar, Factory Length - 1 Set of 12

    • Length: 11.150" OAL

    • Diameter: 7/16 Solid Bar

    • Tips: 10mm Ball, 10mm Ball N/Oil

    • 2019-24 6.7L 24v Cummins Hydraulic Lifter

     SKU: D-205-B-HYD-24V-12
    $183.48 USD

    2019-24 6.7L 24v Cummins with Hydraulic Lifter - Series 2 One Piece Pushrod, Performance Upgrade 7/16 Solid Bar, Factory Length - 1 Set of 12

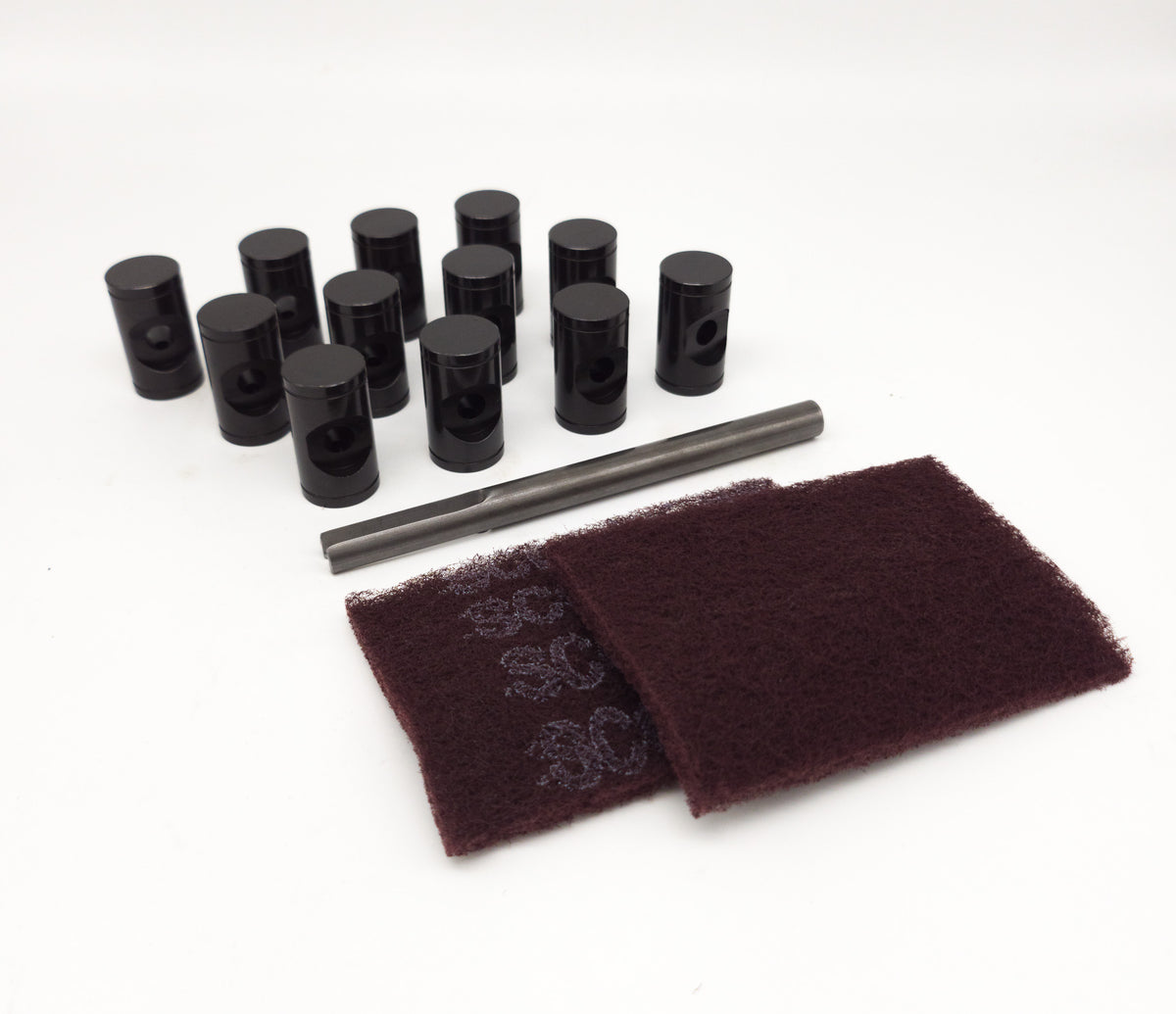

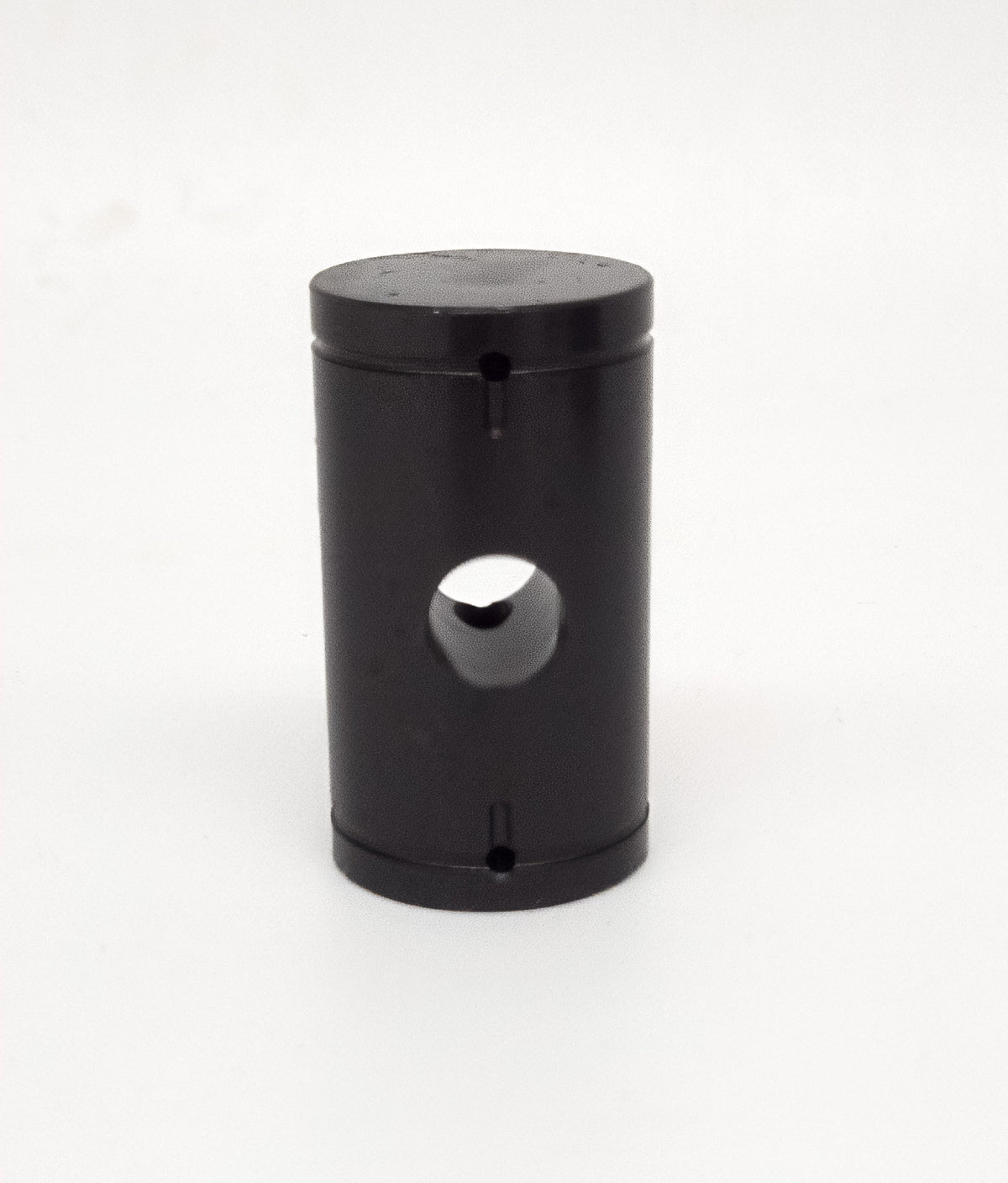

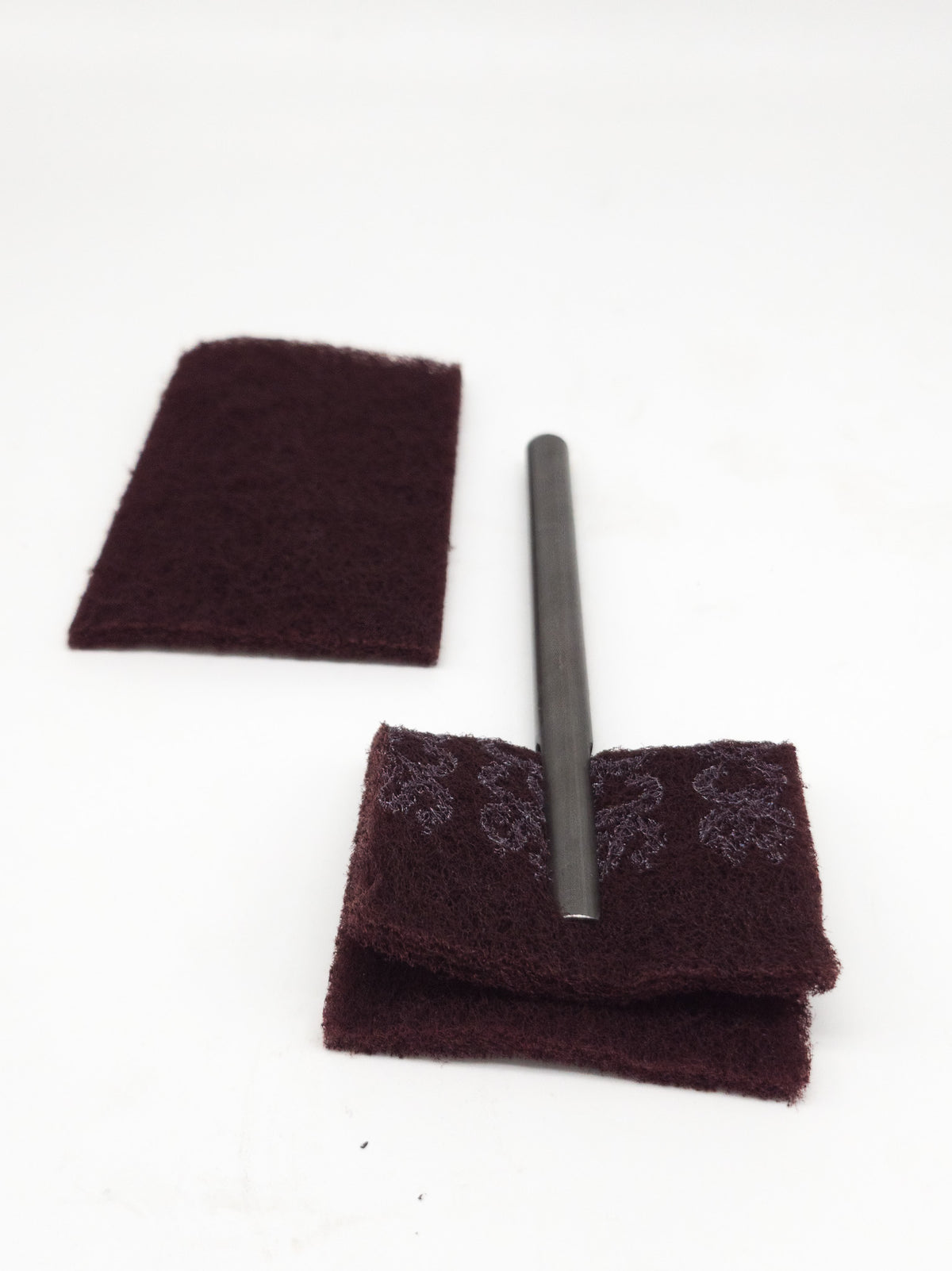

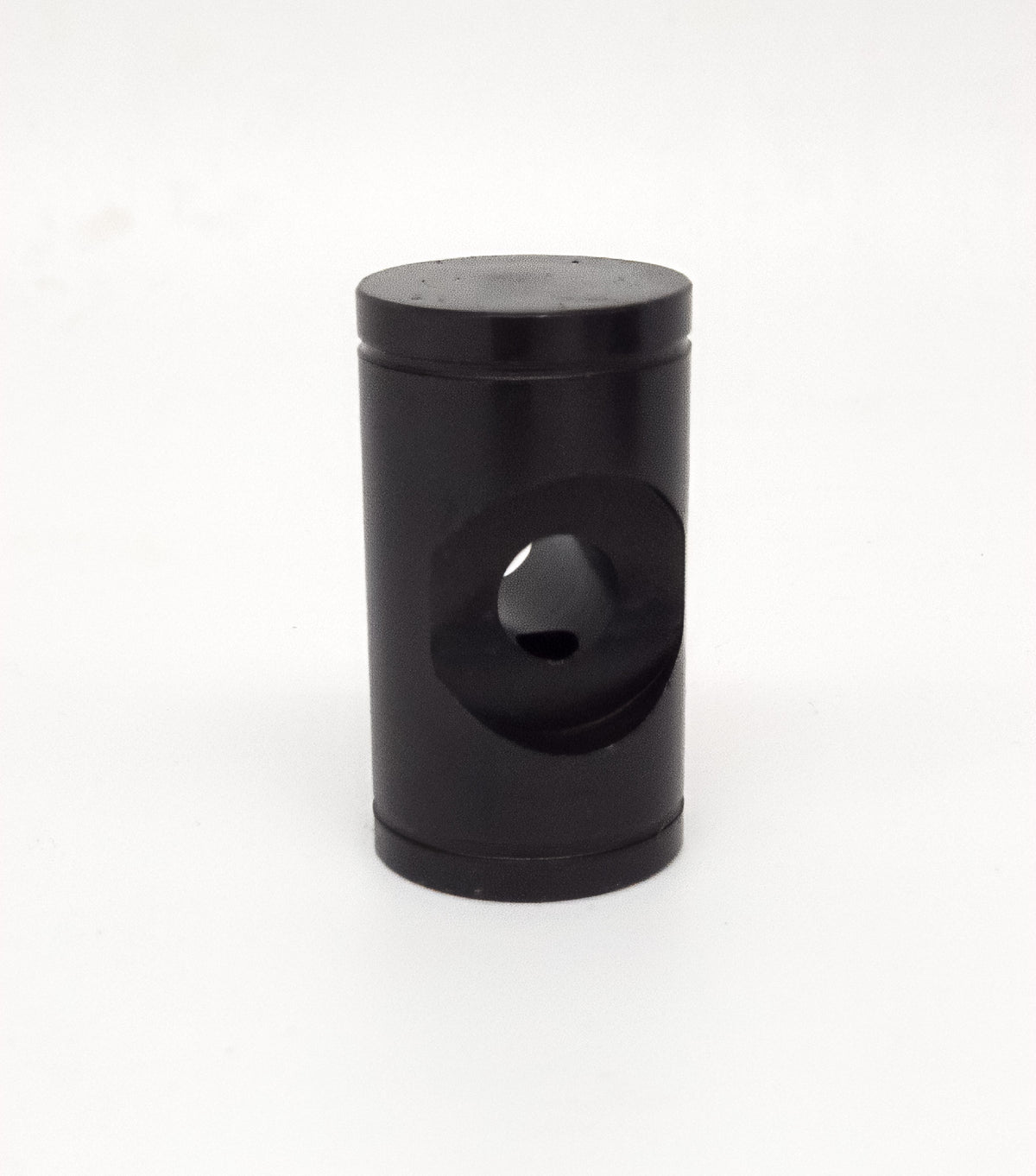

  • Manton Diesel D-100-24V-12 - Engine Trunnion Support Ring

    1998-17 5.9L & 6.7L 24 Valve Cummins Rocker Arm Trunnion Kit - 1 Set of 12

    1998-17 5.9L & 6.7L 24 Valve Cummins Rocker Arm Trunnion Kit - 1 Set of 12

    • 1998-17 24 Valve Cummins Rocker Arm Trunnion Upgrade Replacement

    • Tool Steel Construction

    • Precision Ground & Nitride Heat Treated

    • Upgraded Oil Supply Channels

     SKU: D-100-24V-12
    $576.24 USD

    1998-17 5.9L & 6.7L 24 Valve Cummins Rocker Arm Trunnion Kit - 1 Set of 12
  • Manton Diesel D-305-12V-12 - Engine Push Rod

    1989-98 5.9L 12v Cummins - Series 3 Pushrod, Performance Upgraded Tube Diameter 7/16 x .120 Wall , Factory Length - 1 Set of 12

    1989-98 5.9L 12v Cummins - Series 3 Pushrod, Performance Upgraded Tube Diameter 7/16 x .120 Wall , Factory Length - 1 Set of 12

    • Length: 10.920" OAL

    • Diameter: 7/16

    • Wall Thickness: .120

    • Tips: 3/8 Cup, 5/16 Ball, N/Oil

    • 89-98 5.9L 12V Cummins

     SKU: D-305-12V-12
    $273.48 USD

    1989-98 5.9L 12v Cummins - Series 3 Pushrod, Performance Upgraded Tube Diameter 7/16 x .120 Wall , Factory Length - 1 Set of 12
  • Manton Diesel D-104-24v - Engine Valve Spring Compressor

    1998-17 24 Valve Cummins - Valve Spring Installation Tool

    1998-17 24 Valve Cummins - Valve Spring Installation Tool

    • Valve Spring Installation Tool

    • 1998-17 5.9L & 6.7L 24 Valve Cummins

     SKU: D-104-24v
    $69.84 USD

    1998-17 24 Valve Cummins - Valve Spring Installation Tool
  • Manton Diesel D-105-Kit-12v - Engine Valve Spring

    1989-98 5.9L 12 valve Cummins - Conical Valve Spring Kit

    1989-98 5.9L 12 valve Cummins - Conical Valve Spring Kit

    Includes :

    • Superior Conical Valve Springs

    • Billet Steel Valve Spring Retainers

    • Steel Valve Locks

     SKU: D-105-Kit-12v
    $436.55 USD

    1989-98 5.9L 12 valve Cummins - Conical Valve Spring Kit
  • Manton Diesel D-851 - Engine Rocker Arm Adjusting Nut

    1989-17 12 & 24 Valve Cummins Rocker Arm Jam Nut 3/8-24 x .620 O.D. 12 pt. (D-851)

    1989-17 12 & 24 Valve Cummins Rocker Arm Jam Nut 3/8-24 x .620 O.D. 12 pt. (D-851)

    • Thread: 3/8-24

    • Outer Diameter: .620 in

    • Wrench Size: 7/16

    • Mass: 5.5 g

    • Torque Spec: 35 ft*lb

     SKU: D-851
    $3.73 USD

    1989-17 12 & 24 Valve Cummins Rocker Arm Jam Nut 3/8-24 x .620 O.D. 12 pt. (D-851)
  • Manton Pushrods CUSTOM PUSHROD FORM - Engine Push Rod

    Custom Pushrod Order Form

    Custom Pushrod Order Form

    • Tube Diameters 3/16", 1/4", 5/16", 11/32", 3/8", 7/16", 1/2", 9/16", 5/8" & 3/4"

    • Multiple Heat Treat Options

    • Tool Steel Pushrods

    • Custom Pushrods For Any Engine

     SKU: CUSTOM PUSHROD FORM
    $0.00 USD

    Custom Pushrod Order Form

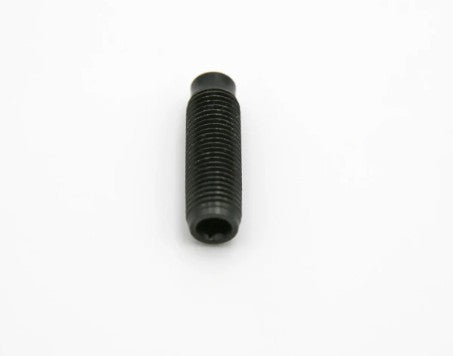

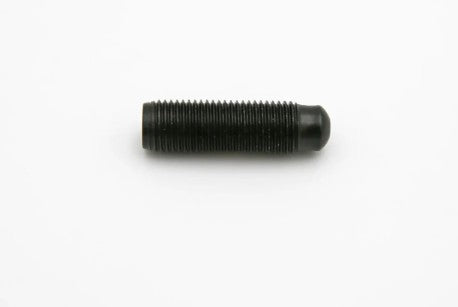

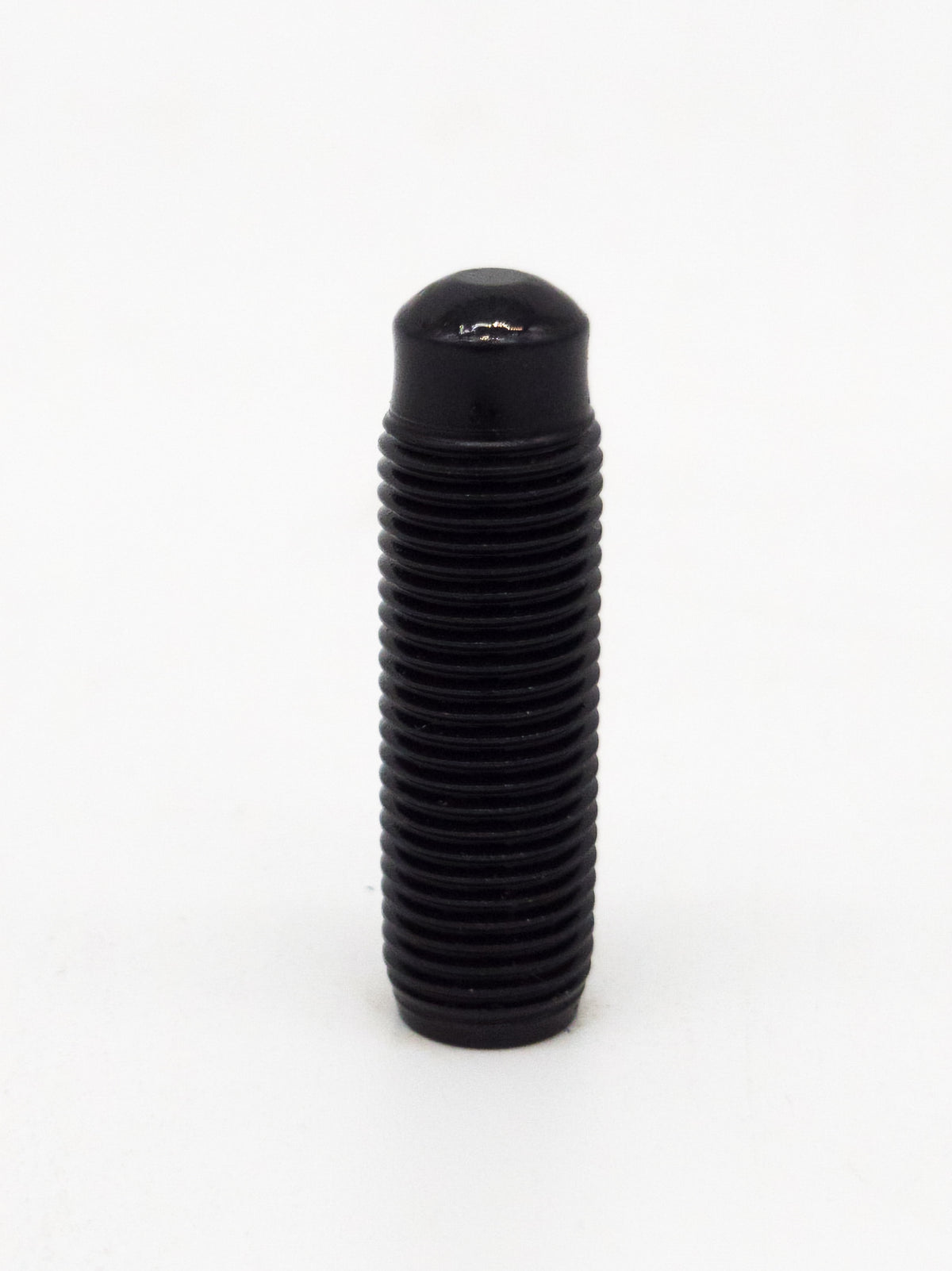

  • Manton Diesel D-837 - Engine Rocker Arm Adjusting Screw

    1998-19 5.9L 24 Valve Cummins - Rocker Arm Adjusting Screw, H-13 Tool Steel

    1998-19 5.9L 24 Valve Cummins - Rocker Arm Adjusting Screw, H-13 Tool Steel

    • End: 10mm Ball

    • Thread Size: 3/8-24

    • Length: 1.300

    • Oil Configuration: No Oil Hole

    • Allen wrench size: 3/16

    • H-13 Tool Steel

     SKU: D-837
    $33.07 USD

    1998-19 5.9L 24 Valve Cummins - Rocker Arm Adjusting Screw, H-13 Tool Steel
  • Manton Diesel D-305-168-7.3PS-16 - Engine Push Rod

    1994-03 7.3L Powerstroke - Series 3 Pushrods, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall, Factory Length - 1 Set of 16

    1994-03 7.3L Powerstroke - Series 3 Pushrods, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall, Factory Length - 1 Set of 16

    • Length: 10.240" OAL

    • Diameter: 7/16

    • Wall Thickness: .168

    • Tips: 3/8 Ball, 3/8 Ball, W/Oil

    • 1994 – 2003 7.3 Powerstroke

     SKU: D-305-168-7.3PS-16
    $406.88 USD

    1994-03 7.3L Powerstroke - Series 3 Pushrods, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-205-B-HYDV2-24V-12 - Engine Push Rod

    2025 to Current 6.7L 24v Cummins with Hydraulic Lifter- Series 2 One Piece Pushrod, Performance Upgrade 7/16 Solid Bar, Factory Length - 1 Set of 12

    2025 to Current 6.7L 24v Cummins with Hydraulic Lifter- Series 2 One Piece Pushrod, Performance Upgrade 7/16 Solid Bar, Factory Length - 1 Set of 12

    • Length: 10.160" OAL

    • Diameter: 7/16 Solid Bar

    • Tips: 10mm Ball, 10mm Ball N/Oil

    • 2025 to Current 6.7L 24v Cummins Hydraulic Lifter

     SKU: D-205-B-HYDV2-24V-12
    $183.48 USD

    2025 to Current 6.7L 24v Cummins with Hydraulic Lifter- Series 2 One Piece Pushrod, Performance Upgrade 7/16 Solid Bar, Factory Length - 1 Set of 12
  • Manton Diesel D-504-168-12v-12 - Engine Push Rod

    1989-98 5.9L 12v Cummins - Series 5 Pushrod, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall , Factory Length - 1 Set of 12

    1989-98 5.9L 12v Cummins - Series 5 Pushrod, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall , Factory Length - 1 Set of 12

    • Length: 10.920" OAL

    • Diameter: 7/16

    • Wall Thickness: .168

    • Tips: 3/8 Cup, 5/16 Ball, N/Oil

    • 1989-98 5.9L 12V Cummins

     SKU: D-504-168-12v-12
    $509.76 USD

    1989-98 5.9L 12v Cummins - Series 5 Pushrod, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall , Factory Length - 1 Set of 12
  • Manton Diesel D-105-KIT-24v-HB - Engine Valve Spring

    1998-17 5.9L & 6.7L 24 Valve Cummins High Boost Conical Valve Spring Kit

    1998-17 5.9L & 6.7L 24 Valve Cummins High Boost Conical Valve Spring Kit

    • 24 - Conical Valve Springs

    • 24 - Billet Valve Spring Retainers

    • 48 - Valve Locks

    • 125 lbs @ 1.370" installed height

    • 190 lbs @ 0.920" lift

     SKU: D-105-KIT-24v-HB
    $576.25 USD

    1998-17 5.9L & 6.7L 24 Valve Cummins High Boost Conical Valve Spring Kit

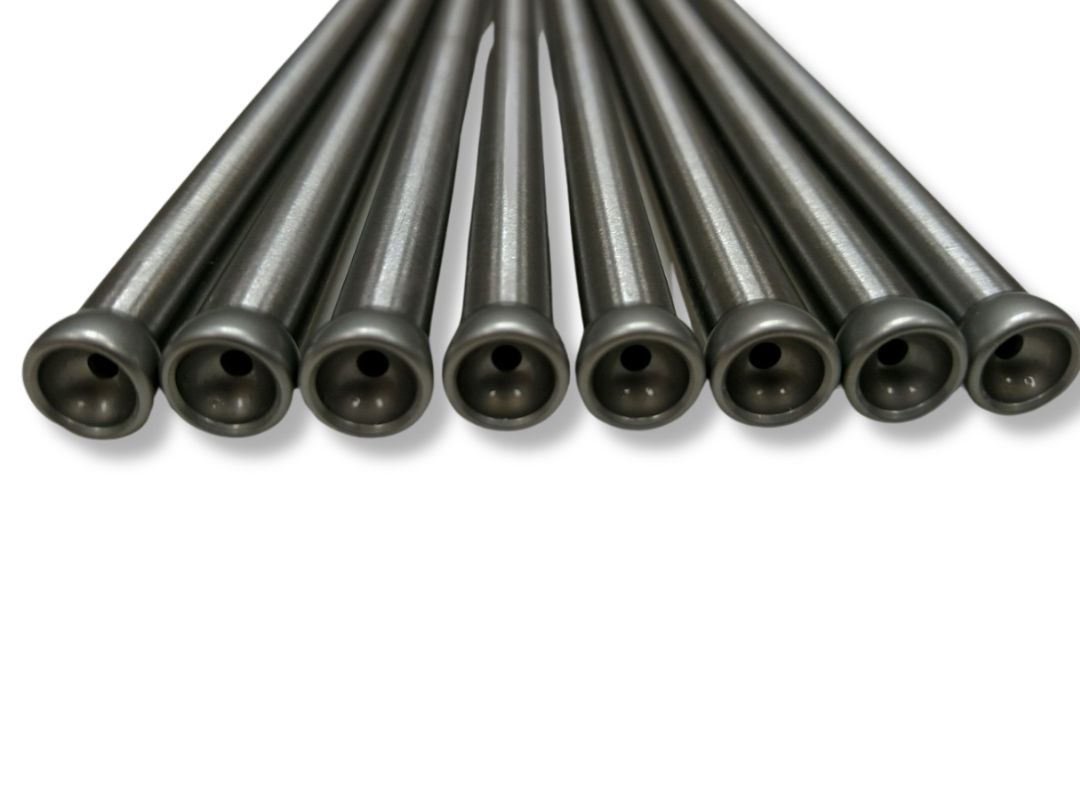

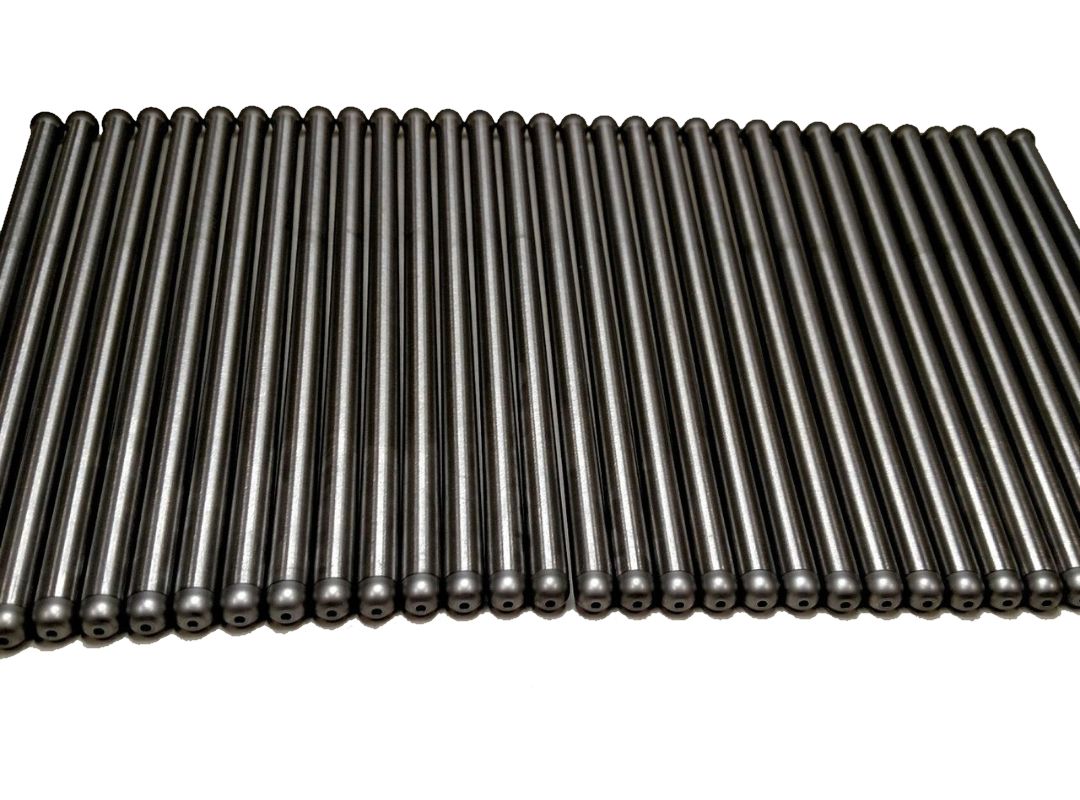

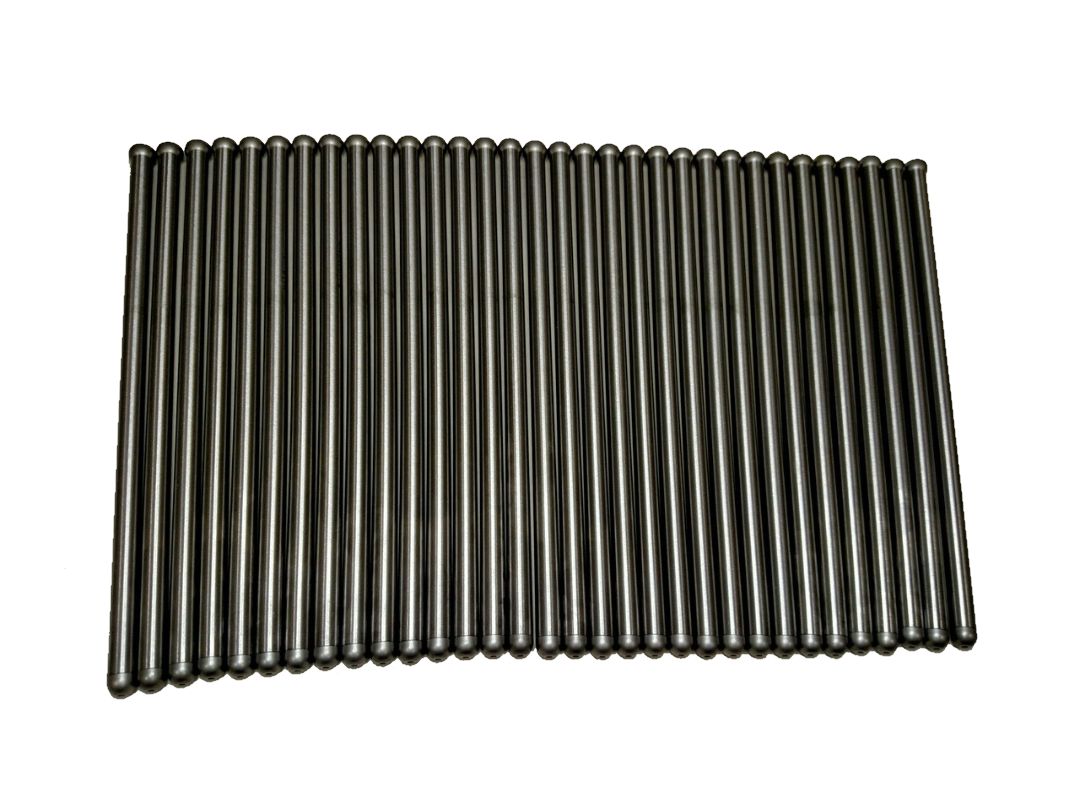

  • Manton Diesel D-304-145-6.7SF-32 - Engine Push Rod

    2011-26 6.7 Powerstroke - Series 3 Pushrod, Upgrade Wall Thickness 3/8 x .145 Wall Factory Length - 1 Set of 32

    2011-26 6.7 Powerstroke - Series 3 Pushrod, Upgrade Wall Thickness 3/8 x .145 Wall Factory Length - 1 Set of 32

    • Length: 9.560" OAL

    • Diameter: 3/8

    • Wall Thickness: .145

    • Tips: 11/32 Cup, 3/8 Ball, W/Oil

    • 2011 to Present 6.7 Powerstroke Scorpion Ford

     SKU: D-304-145-6.7SF-32
    $852.48 USD

    2011-26 6.7 Powerstroke - Series 3 Pushrod, Upgrade Wall Thickness 3/8 x .145 Wall Factory Length - 1 Set of 32
  • Manton Diesel D-305-6.0/6.4PS-16 - Engine Push Rod

    2003-10 6.0L / 6.4L Powerstroke -Series 3 Pushrods, Performance Upgrade Tube Diameter 7/16 X .120 Wall, Factory Length - 1 Set of 16

    2003-10 6.0L / 6.4L Powerstroke -Series 3 Pushrods, Performance Upgrade Tube Diameter 7/16 X .120 Wall, Factory Length - 1 Set of 16

    • Length: 9.795" OAL

    • Diameter: 7/16

    • Wall Thickness: .120

    • Tips: 3/8 Ball, 3/8 Ball W/Oil

    • 2003-2010 6.0&6.4 Powerstroke

     SKU: D-305-6.0/6.4PS-16
    $333.66 USD

    2003-10 6.0L / 6.4L Powerstroke -Series 3 Pushrods, Performance Upgrade Tube Diameter 7/16 X .120 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-304-L5P-16 - Engine Push Rod

    2017 to Present 6.6L Duramax L5P - Series 3 Pushrods, 3/8 X .095 Wall, Factory Length - 1 Set of 16

    2017 to Present 6.6L Duramax L5P - Series 3 Pushrods, 3/8 X .095 Wall, Factory Length - 1 Set of 16

    • Length: 8.560" OAL

    • Diameter: 3/8

    • Wall Thickness: .095

    • Tips: 12mm Cup, 12mm Ball, W/Oil

    • 2017-Present 6.6L Duramax (LP5)

     SKU: D-304-L5P-16
    $378.08 USD

    2017 to Present 6.6L Duramax L5P - Series 3 Pushrods, 3/8 X .095 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-304-145-6.0/6.4PS-16 - Engine Push Rod

    2003-10 6.0L / 6.4L Powerstroke -Series 3 Pushrods, Upgrade Wall Thickness 3/8 X .145 Wall, Factory Length - 1 Set of 16

    2003-10 6.0L / 6.4L Powerstroke -Series 3 Pushrods, Upgrade Wall Thickness 3/8 X .145 Wall, Factory Length - 1 Set of 16

    • Length: 9.795" OAL

    • Diameter: 3/8

    • Wall Thickness: .145

    • Tips: 3/8 Ball, 3/8 Ball W/Oil

    • 2003-2010 6.0&6.4 Powerstroke

     SKU: D-304-145-6.0/6.4PS-16
    $395.68 USD

    2003-10 6.0L / 6.4L Powerstroke -Series 3 Pushrods, Upgrade Wall Thickness 3/8 X .145 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-305-168-Dmax-16 - Engine Push Rod

    2001-17 6.6L Duramax - Series 3 Pushrods, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall, Factory Length - 1 Set of 16

    2001-17 6.6L Duramax - Series 3 Pushrods, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall, Factory Length - 1 Set of 16

    • Length: 9.430" OAL

    • Diameter: 7/16

    • Wall Thickness: .168

    • Tips: 12mm Cup, 12mm Ball, W/Oil

    • 2001-2017 6.6L Duramax

     SKU: D-305-168-Dmax-16
    $487.04 USD

    2001-17 6.6L Duramax - Series 3 Pushrods, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-305-HYDV2-24v-12 - Engine Push Rod

    2025 to Current 6.7L 24v Cummins with Hydraulic Lifter- Series 3 Pushrod, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 12

    2025 to Current 6.7L 24v Cummins with Hydraulic Lifter- Series 3 Pushrod, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 12

    • Length: 11.150" OAL

    • Diameter: 7/16

    • Wall Thickness: .120

    • Tips: 10mm Ball, 10mm Ball, No Oil

    • 2025 to Current 6.7L 24v Cummins Hydraulic Lifter

     SKU: D-305-HYDV2-24v-12
    $250.22 USD

    2025 to Current 6.7L 24v Cummins with Hydraulic Lifter- Series 3 Pushrod, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 12
  • Manton Diesel D-304-Dmax-16 - Engine Push Rod

    2001-17 6.6L Duramax - Series 3 Pushrods, 3/8 X .095 Wall, Factory Length - 1 Set of 16

    2001-17 6.6L Duramax - Series 3 Pushrods, 3/8 X .095 Wall, Factory Length - 1 Set of 16

    • Length: 9.430" OAL

    • Diameter: 3/8

    • Wall Thickness: .095

    • Tips: 12mm Cup, 12mm Ball, W/Oil

    • 2001-2017 6.6L Duramax

     SKU: D-304-Dmax-16
    $378.08 USD

    2001-17 6.6L Duramax - Series 3 Pushrods, 3/8 X .095 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-304-24V-12 - Engine Push Rod

    1999-19 5.9L 24v Cummins - Series 3 Pushrod, 3/8 x .095 Wall Factory Length - 1 Set of 12

    1999-19 5.9L 24v Cummins - Series 3 Pushrod, 3/8 x .095 Wall Factory Length - 1 Set of 12

    • Length: 11.450" OAL

    • Diameter: 3/8

    • Wall Thickness: .095

    • Tips: 10mm Cup / 10mm Ball, N/Oil

    • 1999-19 5.9L & 6.7L 24V Cummins

     SKU: D-304-24V-12
    $283.56 USD

    1999-19 5.9L 24v Cummins - Series 3 Pushrod, 3/8 x .095 Wall Factory Length - 1 Set of 12
  • Manton Diesel D-304-12V-12 - Engine Push Rod

    1989-98 5.9L 12v Cummins - Series 3 Pushrod, 3/8 x .095 Wall Factory Length - 1 Set of 12

    1989-98 5.9L 12v Cummins - Series 3 Pushrod, 3/8 x .095 Wall Factory Length - 1 Set of 12

    • Length: 10.920" OAL

    • Diameter: 3/8

    • Wall Thickness: .095

    • Tips: 3/8 Cup, 5/16 Ball, N/Oil

    • 1989-98 5.9L 12 Valve Cummins

     SKU: D-304-12V-12
    $246.72 USD

    1989-98 5.9L 12v Cummins - Series 3 Pushrod, 3/8 x .095 Wall Factory Length - 1 Set of 12

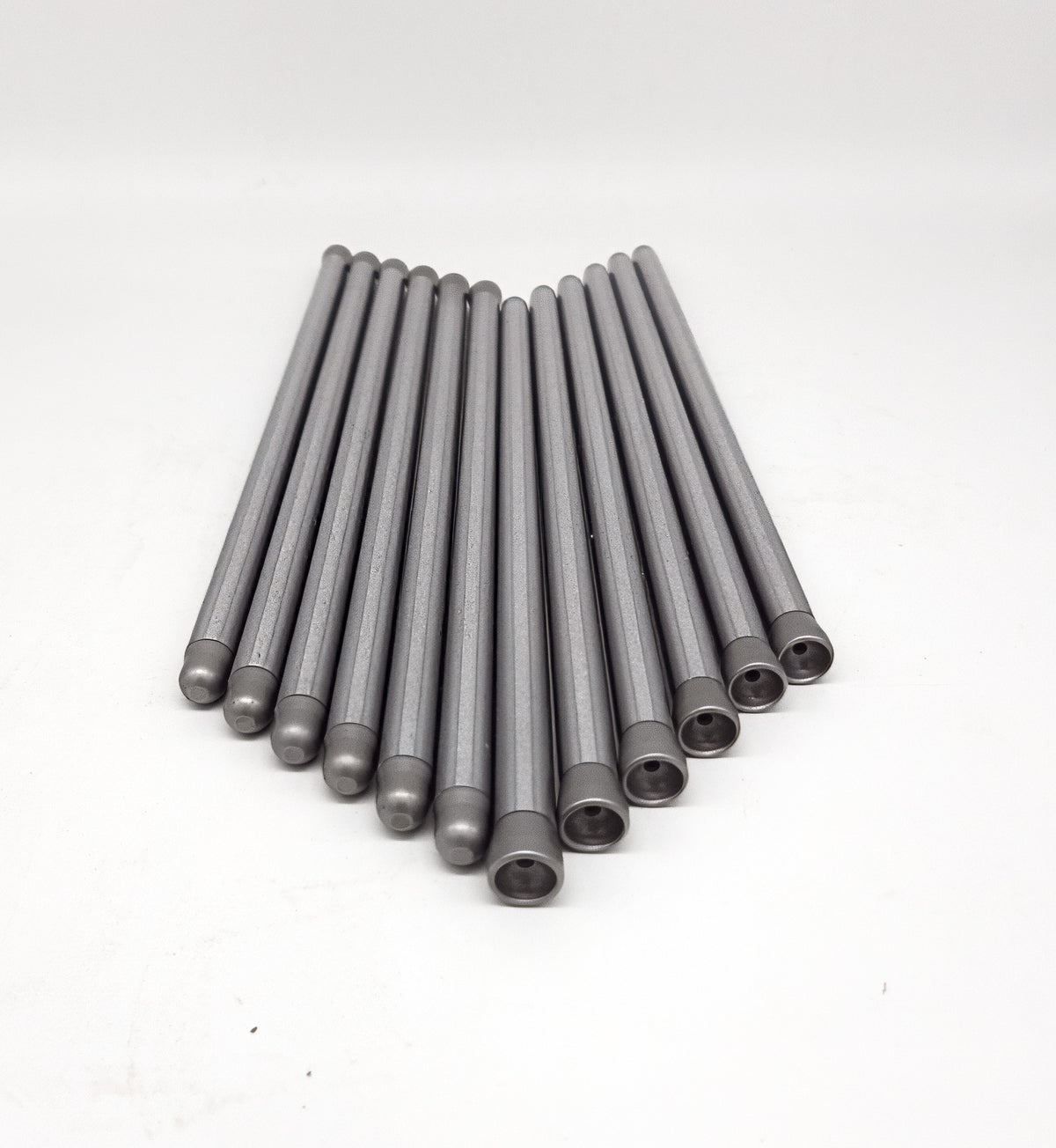

  • Manton Diesel D-305-24V-12 - Engine Push Rod

    1999-19 5.9L 24 Valve Cummins - Series 3 Pushrod, Performance Upgraded Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 12

    1999-19 5.9L 24 Valve Cummins - Series 3 Pushrod, Performance Upgraded Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 12

    • Length: 11.450" OAL

    • Diameter: 7/16

    • Wall Thickness: .120

    • Tips: 10mm Cup, 10mm Ball, N/Oil

    • 1999-19 5.9L & 6.7L 24V Cummins

     SKU: D-305-24V-12
    $310.32 USD

    1999-19 5.9L 24 Valve Cummins - Series 3 Pushrod, Performance Upgraded Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 12
  • Manton Diesel D-305-Dmax-16 - Engine Push Rod

    2001-17 6.6L Duramax - Series 3 Pushrods, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 16

    2001-17 6.6L Duramax - Series 3 Pushrods, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 16

    • Length: 9.430" OAL

    • Diameter: 7/16

    • Wall Thickness: .120

    • Tips: 12mm Cup, 12mm Ball, W/Oil

    • 2001-2017 Duramax

     SKU: D-305-Dmax-16
    $413.76 USD

    2001-17 6.6L Duramax - Series 3 Pushrods, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 16

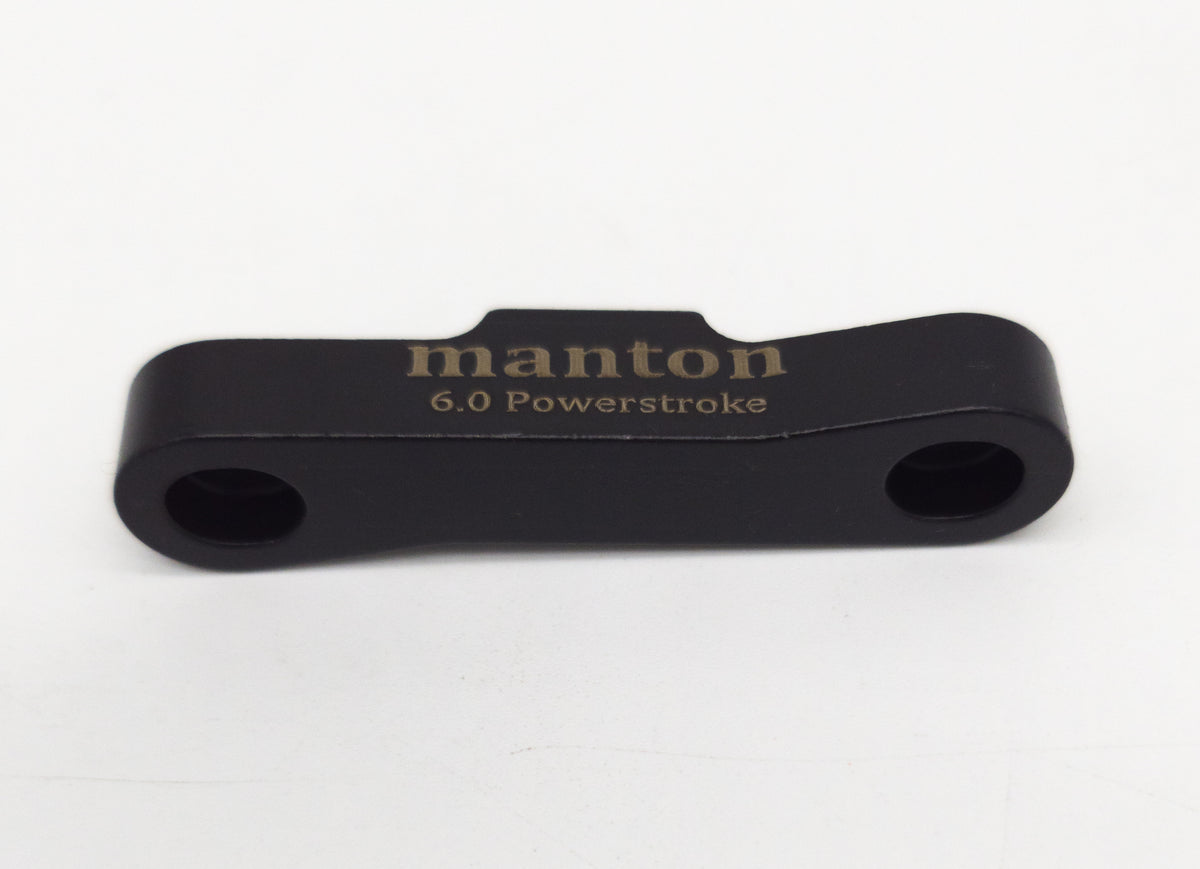

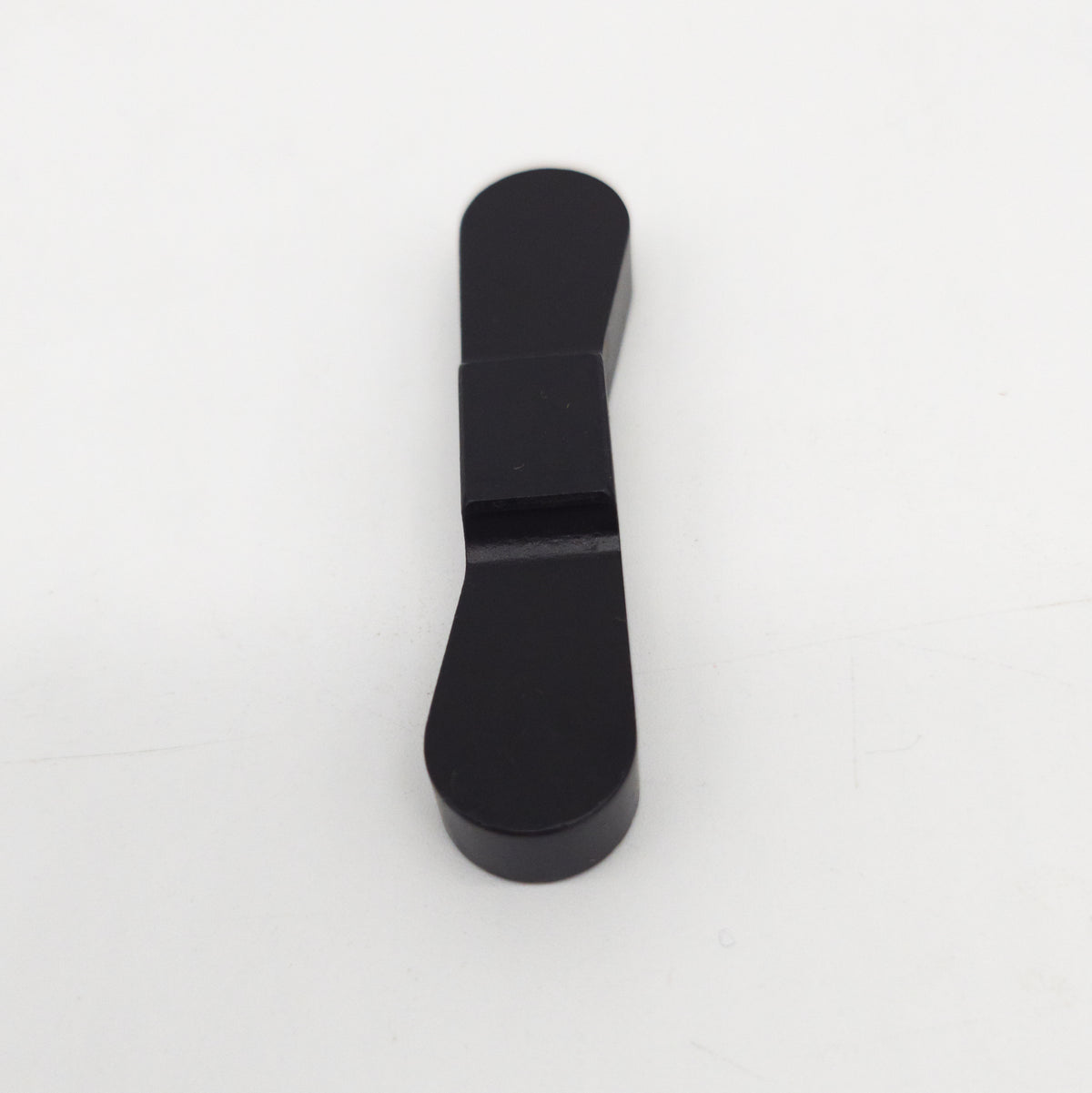

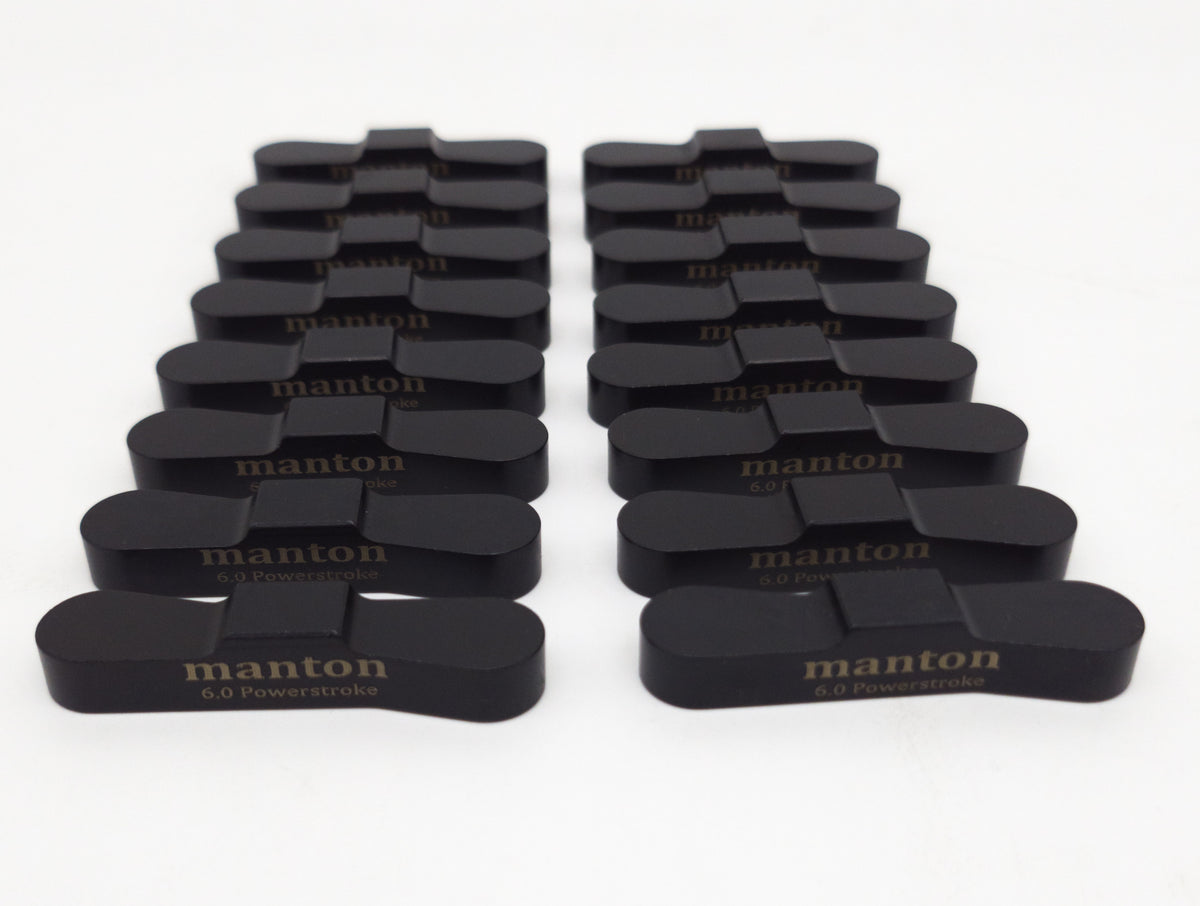

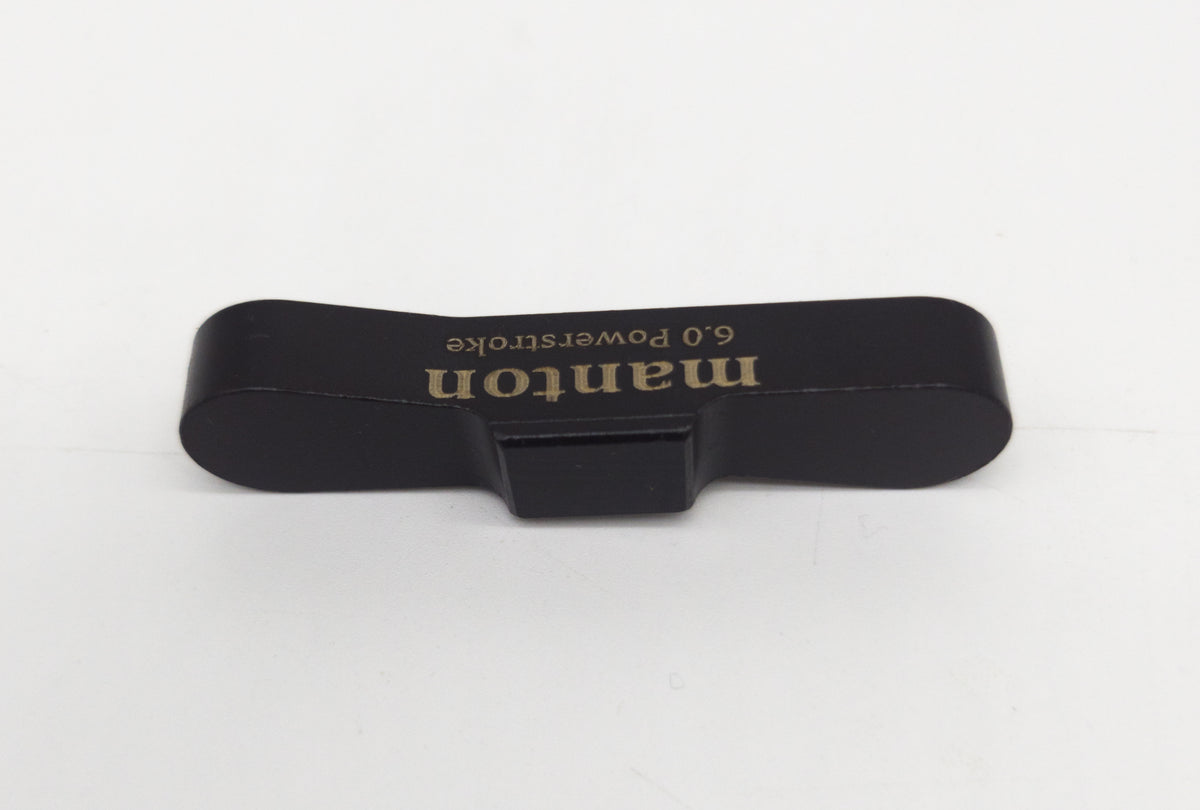

  • Manton Diesel D-110-6.0-16 - Engine Valve Bridge

    2003-07 6.0L Powerstroke Billet Steel Valve Bridge - 1 Set of 16

    2003-07 6.0L Powerstroke Billet Steel Valve Bridge - 1 Set of 16

    • 6.4 Powerstroke Stock Replacement

    • Billet Steel Construction

    • Nitride Heat Treated

    • 2003-07 Ford 6.0 Powerstroke

     SKU: D-110-6.0-16
    $488.00 USD

    2003-07 6.0L Powerstroke Billet Steel Valve Bridge - 1 Set of 16
