Series 5

The strongest most durable chromoly pushrod ever produced in the world.

  • Mainly used in Cup, Top Fuel, Pro Stock, Pro Modified, Blown Alcohol, Pulling Tractor, Sprint Car, Offshore Marine, and LS Series
  • Normally Aspirated, Blown, Turbo Charged or Nitrous
  • Utilizing 4130/4135 chromoly tubing and with proprietary head treating techniques we are able to achieve a 275,000 psi tensile strength from the tubing without causing it to become brittle

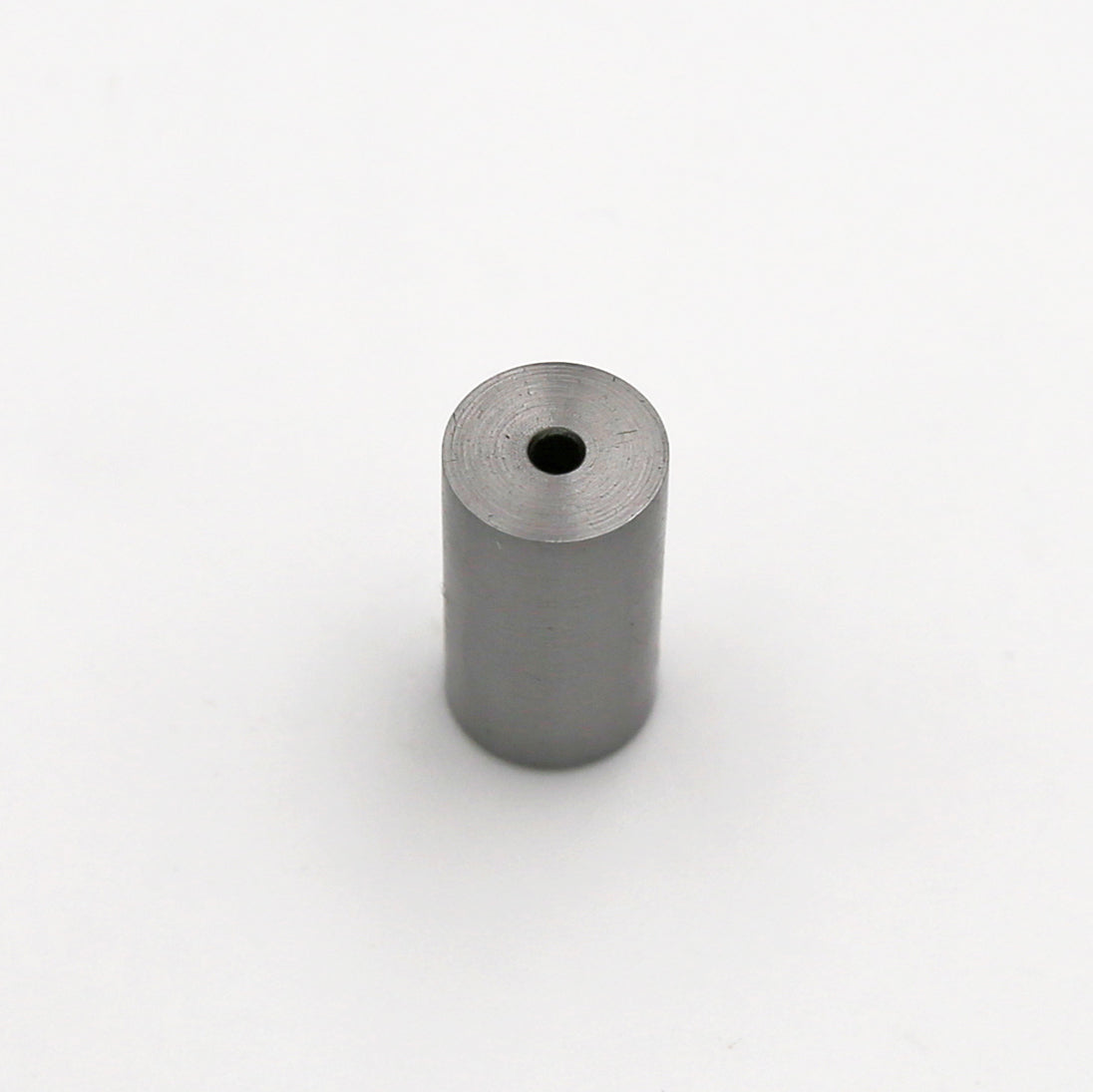

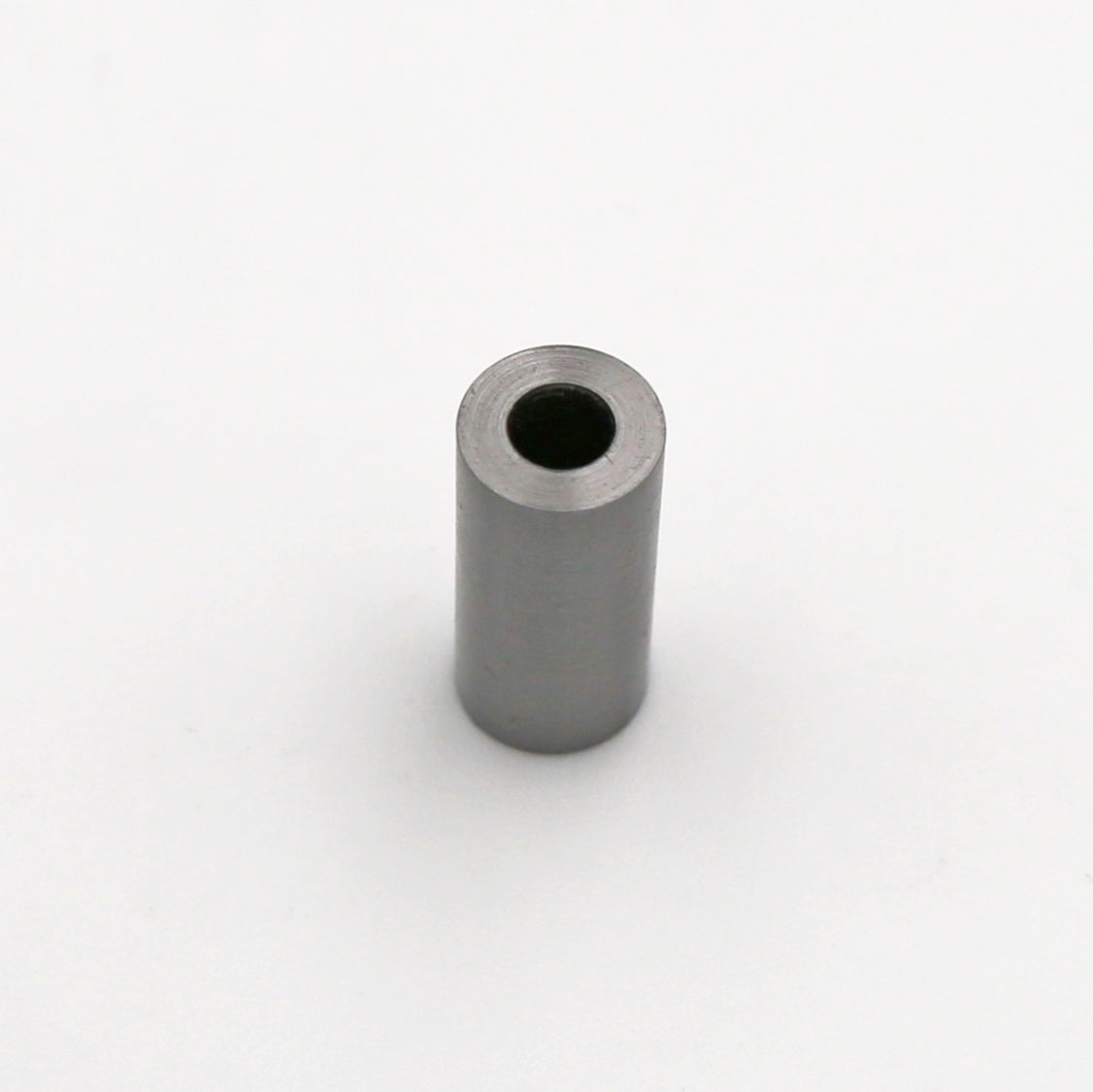

  • Variety of tips available in 8620, H-13 or Copper Alloy Insert Cup
  • Individually hand crafted and inspected
  • Shaft or pedestal style rockerarms should be used in conjunction with this series of pushrod because we do not case harden the tube for guide plate use
Skip to results list

Filters

11 items

Filter

  • Manton Pushrods CUSTOM PUSHROD FORM - Engine Push Rod

    Custom Pushrod Order Form

    Custom Pushrod Order Form

    • Tube Diameters 3/16", 1/4", 5/16", 11/32", 3/8", 7/16", 1/2", 9/16", 5/8" & 3/4"

    • Multiple Heat Treat Options

    • Tool Steel Pushrods

    • Custom Pushrods For Any Engine

     SKU: CUSTOM PUSHROD FORM
    $0.00 USD

    Custom Pushrod Order Form
  • Manton Pushrods 503-LT-16 - Engine Push Rod

    2013 to Current GM 6.2L GEN V LT - Series 5 Performance Upgrade Pushrods, 3/8 x .095 Wall, Factory Length - 1 Set of 16

    2013 to Current GM 6.2L GEN V LT - Series 5 Performance Upgrade Pushrods, 3/8 x .095 Wall, Factory Length - 1 Set of 16

    • Length: 7.850" OAL

    • Diameter: 3/8

    • Wall Thickness: .095

    • Tips: 5/16 Ball, 5/16 Ball W/Oil

    • 2013 to Current GM Gen V 6.2L LT

     SKU: 503-LT-16
    $433.12 USD

    2013 to Current GM 6.2L GEN V LT - Series 5 Performance Upgrade Pushrods, 3/8 x .095 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-504-168-12v-12 - Engine Push Rod

    1989-98 5.9L 12v Cummins - Series 5 Pushrod, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall , Factory Length - 1 Set of 12

    1989-98 5.9L 12v Cummins - Series 5 Pushrod, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall , Factory Length - 1 Set of 12

    • Length: 10.920" OAL

    • Diameter: 7/16

    • Wall Thickness: .168

    • Tips: 3/8 Cup, 5/16 Ball, N/Oil

    • 1989-98 5.9L 12V Cummins

     SKU: D-504-168-12v-12
    $509.76 USD

    1989-98 5.9L 12v Cummins - Series 5 Pushrod, Performance Upgrade Tube Diameter and Wall Thickness 7/16 x .168 Wall , Factory Length - 1 Set of 12
  • Manton Pushrods 503-LS7-16 - Engine Push Rod

    2006-15 GM 7.0L LS7 - Series 5 Performance Upgrade Pushrods, 3/8 x .095 Wall, Factory Length - 1 Set of 16

    2006-15 GM 7.0L LS7 - Series 5 Performance Upgrade Pushrods, 3/8 x .095 Wall, Factory Length - 1 Set of 16

    • Length: 7.800" OAL

    • Diameter: 3/8

    • Wall Thickness: .095

    • Tips: 5/16 Ball, 5/16 Ball W/Oil

    • 2003-15 GM 7.0L LS7

     SKU: 503-LS7-16
    $433.12 USD

    2006-15 GM 7.0L LS7 - Series 5 Performance Upgrade Pushrods, 3/8 x .095 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-504-24V-12 - Engine Push Rod

    1999-19 5.9L 24 Valve Cummins - Series 5 Pushrod, Performance Upgraded Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 12

    1999-19 5.9L 24 Valve Cummins - Series 5 Pushrod, Performance Upgraded Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 12

    • Length: 11.450" OAL

    • Diameter: 7/16

    • Wall Thickness: .120

    • Tips: 10mm Cup, 10mm Ball, N/Oil

    • 1999-19 5.9L 24V Cummins

     SKU: D-504-24V-12
    $492.48 USD

    1999-19 5.9L 24 Valve Cummins - Series 5 Pushrod, Performance Upgraded Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 12
  • Manton Diesel D-504-Dmax-16 - Engine Push Rod

    2001-17 6.6L Duramax - Series 5 Pushrods, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 16

    2001-17 6.6L Duramax - Series 5 Pushrods, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 16

    • Length: 9.430" OAL

    • Diameter: 7/16

    • Wall Thickness: .120

    • 12mm Cup, 12mm Ball, W/Oil

    • 2001-2017 6.6L Duramax

     SKU: D-504-Dmax-16
    $656.64 USD

    2001-17 6.6L Duramax - Series 5 Pushrods, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-504-7.3PS-16 - Engine Push Rod

    1994-03 7.3L Powerstroke - Series 5 Pushrods, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 16

    1994-03 7.3L Powerstroke - Series 5 Pushrods, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 16

    • Length: 10.240" OAL

    • Diameter: 7/16

    • Wall Thickness: .120

    • Tips: 3/8 Ball, 3/8 Ball, W/Oil

    • 1994-03 7.3 Powerstroke

     SKU: D-504-7.3PS-16
    $576.48 USD

    1994-03 7.3L Powerstroke - Series 5 Pushrods, Performance Upgrade Tube Diameter 7/16 x .120 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-504-12V-12 - Engine Push Rod

    1989-98 5.9L 12v Cummins - Series 5 Pushrod, Performance Upgrade Tube Diameter 7/16 x .120 Wall , Factory Length - 1 Set of 12

    1989-98 5.9L 12v Cummins - Series 5 Pushrod, Performance Upgrade Tube Diameter 7/16 x .120 Wall , Factory Length - 1 Set of 12

    • Length: 10.920" OAL

    • Diameter: 7/16

    • Wall Thickness: .120

    • Tips: 3/8 Cup, 5/16 Ball, N/Oil

    • 89-98 5.9L 12V Cummins

     SKU: D-504-12V-12
    $455.40 USD

    1989-98 5.9L 12v Cummins - Series 5 Pushrod, Performance Upgrade Tube Diameter 7/16 x .120 Wall , Factory Length - 1 Set of 12

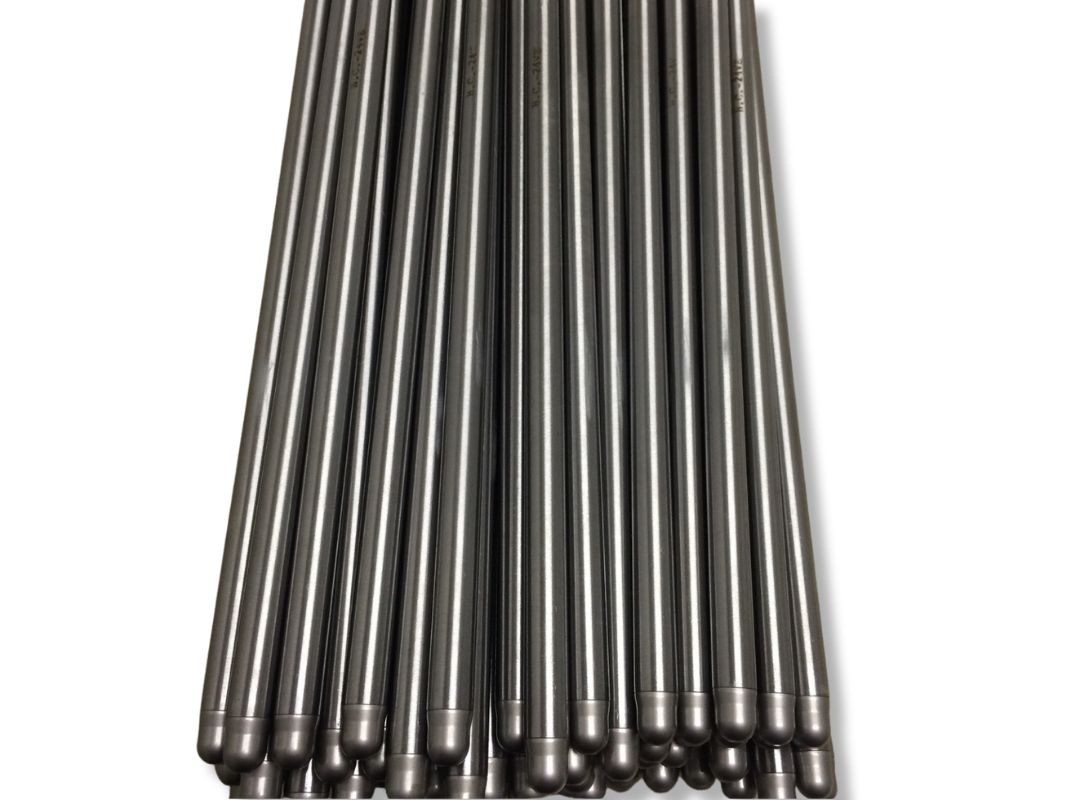

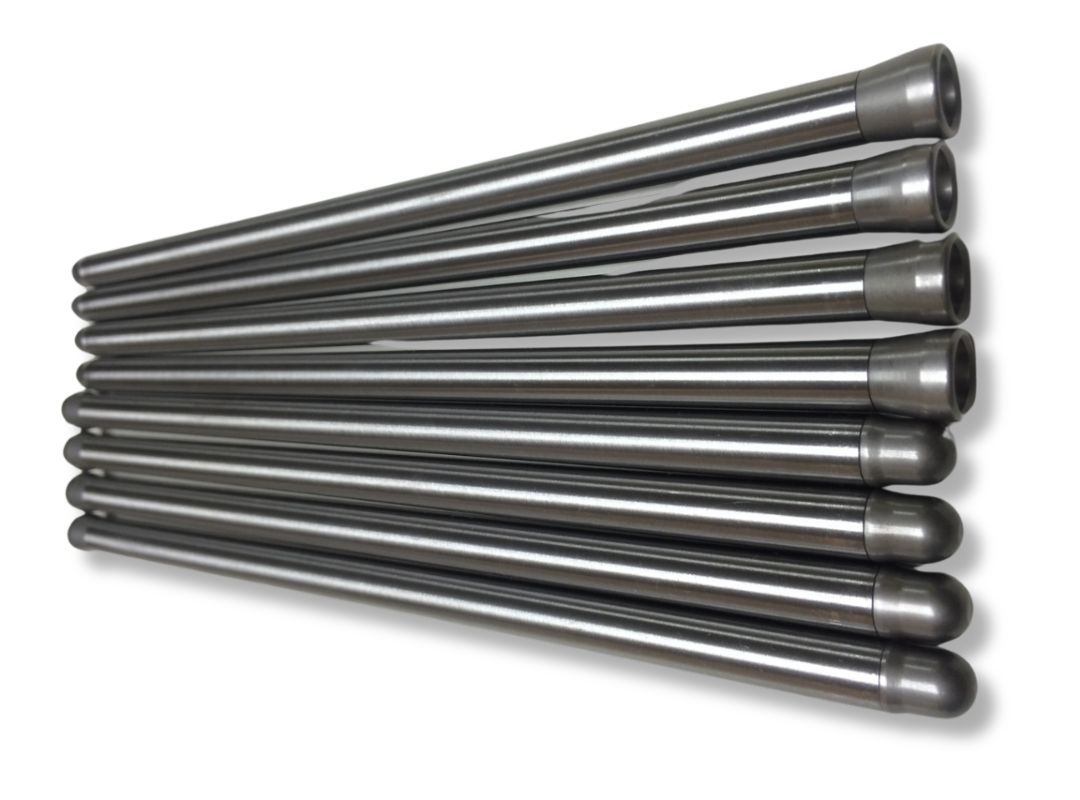

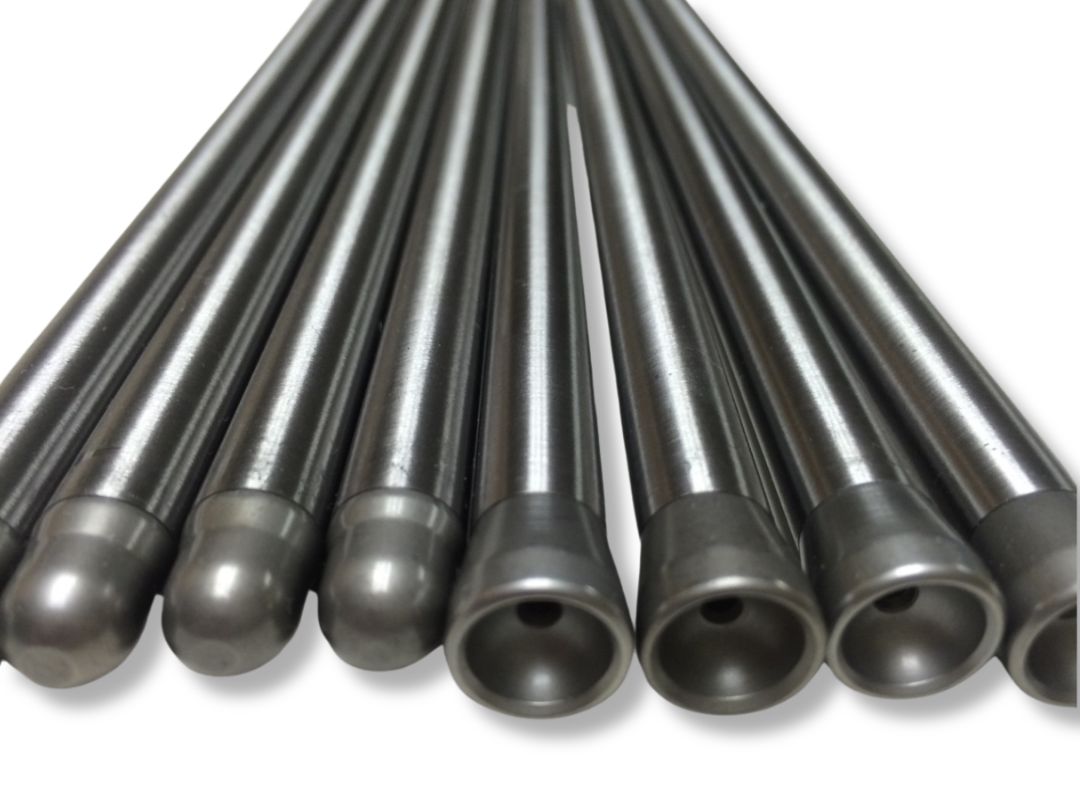

  • Manton Diesel D-504-168-24V-12 - Engine Push Rod

    1999-19 5.9L & 6.7L 24 Valve Cummins - Series 5 Pushrod, Performance Upgraded Tube Diameter and Wall Thickness 7/16 x .168 Wall, Factory Length - 1 Set of 12

    1999-19 5.9L & 6.7L 24 Valve Cummins - Series 5 Pushrod, Performance Upgraded Tube Diameter and Wall Thickness 7/16 x .168 Wall, Factory Length - 1 Set of 12

    • Length: 11.450" OAL

    • Diameter: 7/16

    • Wall Thickness: .168

    • Tips: 10mm Cup, 10mm Ball, N/Oil

    • 1999-19 5.9L & 6.7L 24V Cummins

     SKU: D-504-168-24V-12
    $546.84 USD

    1999-19 5.9L & 6.7L 24 Valve Cummins - Series 5 Pushrod, Performance Upgraded Tube Diameter and Wall Thickness 7/16 x .168 Wall, Factory Length - 1 Set of 12

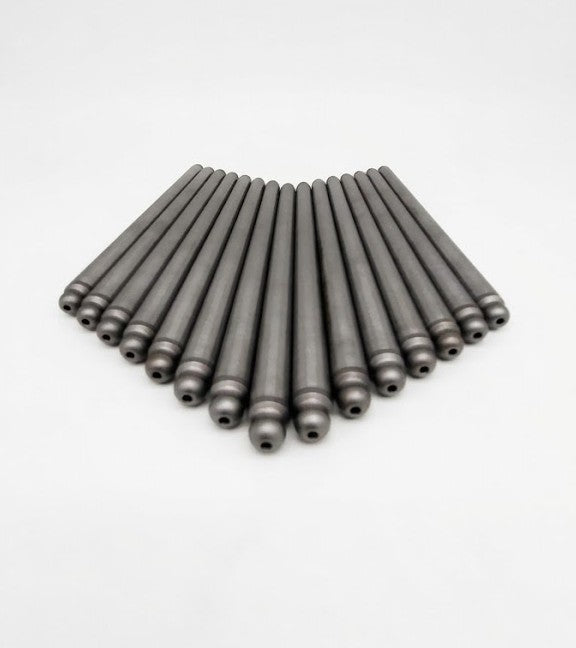

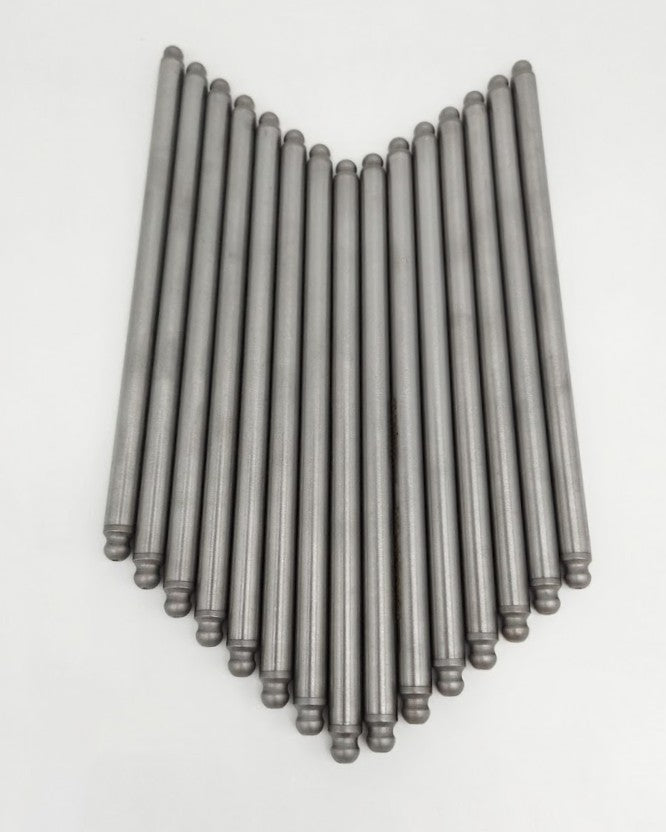

  • Manton Pushrods 503-ZILLA-16 - Engine Push Rod

    2020 to Current 7.3L Ford Godzilla - Series 5 Performance Upgrade Pushrods, 3/8 X .095 Wall, Factory Length - 1 Set of 16

    2020 to Current 7.3L Ford Godzilla - Series 5 Performance Upgrade Pushrods, 3/8 X .095 Wall, Factory Length - 1 Set of 16

    • Length: 8.400" OAL

    • Diameter: 3/8

    • Wall Thickness: .095

    • Tips: 5/16 Ball, 5/16 Ball W/Oil

    • 2020 to Current 7.3L Ford Godzilla

     SKU: 503-ZILLA-16
    $433.12 USD

    2020 to Current 7.3L Ford Godzilla - Series 5 Performance Upgrade Pushrods, 3/8 X .095 Wall, Factory Length - 1 Set of 16
  • Manton Diesel D-503-Dmax-16 - Engine Push Rod

    2001-17 6.6L Duramax - Series 5 Pushrods, 3/8 x .095 Wall, Factory Length - 1 Set of 16

    2001-17 6.6L Duramax - Series 5 Pushrods, 3/8 x .095 Wall, Factory Length - 1 Set of 16

    • Length: 9.430" OAL

    • Diameter: 3/8

    • Wall Thickness: .095

    • Tips: 12mm Cup, 12mm Ball, W/Oil

    • 2001-2017 6.6L Duramax

     SKU: D-503-Dmax-16
    $513.12 USD

    2001-17 6.6L Duramax - Series 5 Pushrods, 3/8 x .095 Wall, Factory Length - 1 Set of 16
